X-ray micto-computed tomography

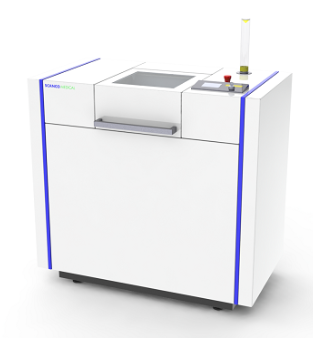

µCT50 combines submicron pixel size (nanoCT) with a large field-of-view, making this system extremely versatile. Variable filter and X-ray power settings greatly increase the range of materials that can be scanned.







Type

Cabinet cone-beam microCT
Fully shielded
No external shielding required

X-ray source

Sealed
Air-cooled
Maintenance-free
5 - 30 µm spot size (4 - 18 W)
20 - 100 kVp (45, 55, 70, 90 kVp preset and calibrated)

Detector

3400 x 1200 elements, 20 µm pitch

Resolution

‹ 2 µm 10% MTF
0.5 µm (nanoCT) - 100 µm nominal isotropic (pixel size)

Image matrix

512 x 512 to 8192 x 8192 pixels

Max. scan size

50 x 120 mm (ØxL)

Max. specimen size

100 x 160 mm (ØxL)
