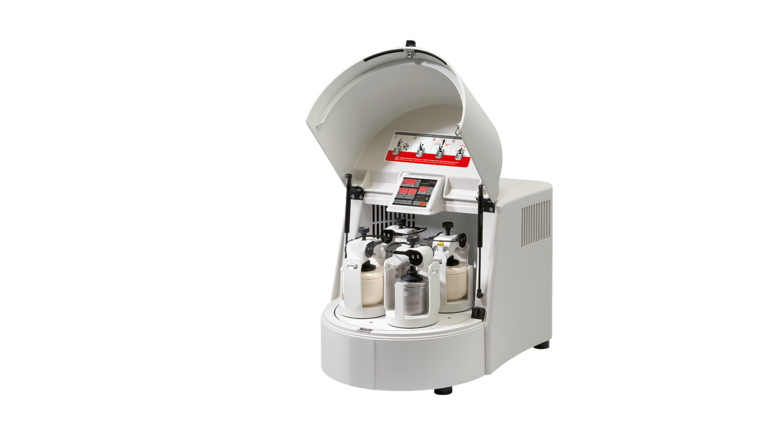

Fritsch Pulverisette 5 Planetary Ball Mill

Description

Planetary ball mills are suitable for grinding hard, medium-hard, soft, brittle, tough, and moist materials. The grinding occurs primarily through the high-energy impact of grinding balls in rotating grinding bowls. The grinding can be performed dry or in suspension. Also, planetary ball mills can be used for mixing and homogenizing emulsions and pastes or for mechanical alloying and activation in materials research.

Specifications

Temperature: room temperature between 5 and 40 °C

Weight: 160 kg

Dimensions (HxWxD): when the hood is open 952 x 581 x 669 mm; when the hood is closed 570 x 581 x 669 mm

Material (bowl and balls): agate

Operating volume: max. feeding size 10 mm; max. feeding volume 900 mL divided into 4 x 500 mL grinding bowls + grinding balls or 450 mL divided into 2 x 500 mL grinding bowl + grinding balls

Ball size: 10, 20, and 30 mm

Final fineness: dry grinding up to d50 < 20 μm (depending on the material); wet grinding up to d50 < 1 μm (depending on the material)
