IKA EUROSTAR Power Control-Visc P7 Laboratory Reactor System
Description

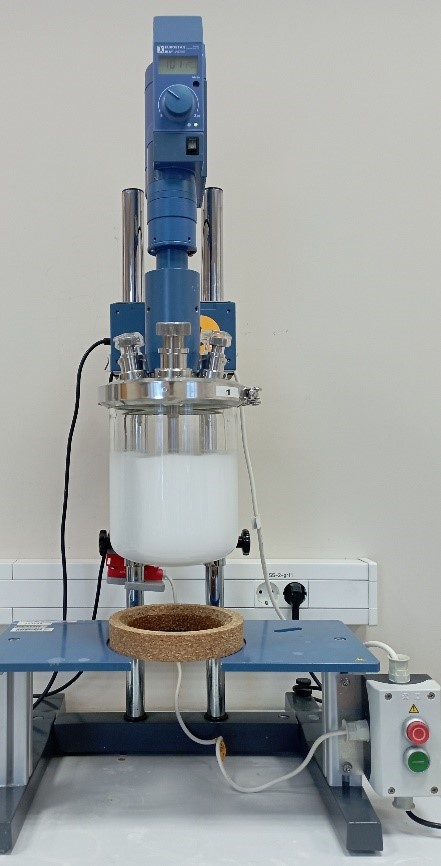

The laboratory reactor system (IKA EUROSTAR Power Control-Visc P7) consists of a stand system, laboratory stirring unit, anchor stirrer with flow boring, single-walled reactor vessel for the laboratory reactors, and cover with openings. The laboratory reactor is suitable for optimizing and reproducing various chemical reactions, mixing, and homogenization processes on a 2-liter lab scale.
Specifications
- Overhead stirrer:
- Depth: 190 mm
- Extension Arm Diameter: 16 mm
- Extension Arm Length: 200 mm
- Height: 330 mm
- Maximum Stirring Quantity: 40 L
- Maximum Stirring Speed: 290 rpm
- Width: 80 mm
- Maximum Torque: 380 N.cm
- Power Requirements: 230/115/100 V, 50/60 Hz, 130 watts
- Maximum Viscosity: 150000 mPa.s
- Weight: 4.9 kg
- Motor Input: 130 W, Output: 110 W
- Stirrer Control: Electronic
- Anchor stirrer
- Material: stainless steel
- With flow borings
- Weight: 0.4335 kg
- Reactor vessel
- Volume: 2 L
- Vessel inner diameter: 150 mm
- Vessel outer diameter: 180 mm
- Height (room dimension): 210 mm
- Width (room dimension): 180 mm
- Depth (room dimension): 180 mm
- Flange dimension: DN150
- Bottom shape: torispherical head
- Vacuum application: yes
- Reactor vessel material: borosilicate glass 3.3 DIN ISO 3585
Weight: 2.18 kg
If interested, please fill out the form below
