Description

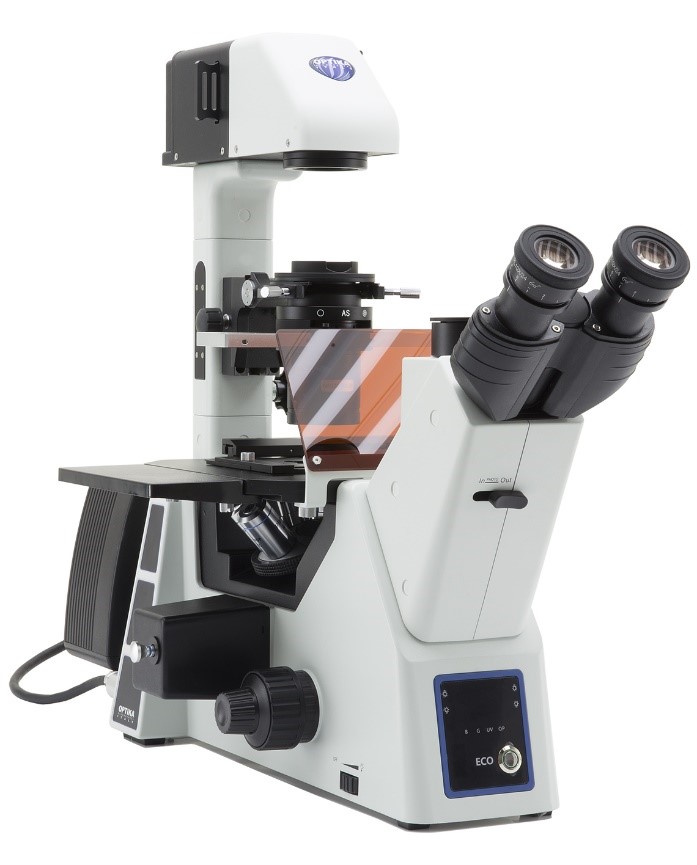

Suitable for cell/bacteria counting, analysis, and morphology analysis. Phase contrast, bright and dark field LED fluorescence trinocular inverted microscope. Camera mode is linked to the computer. 4x - 40x magnification is possible.

Specifications

Dimensions (H×W×D): 545 × 290 × 720 mm

Weight: 13 kg

Light Source: Blue - Green - UV LED - Optional LED on request

LED Wavelength: Blue LED: 470 nm; green LED: 560 nm; UV LED: 385 nm

Head: Trinocular (split ratio: 100/0, 0/100), 45° inclined

Interpupillary distance: Adjustable between 50 and 75 mm

Dioptric adjustment: Both eyepieces

Eyepieces: WF10x/24 mm, high eyepoint, and with retractable rubber cups.

Epi-fluorescence illumination & filters: High-power 5 W LEDs with brightness control, motorized LED selection with central field diaphragm, 4-position filter holder; blue (EX 450-490, DM 495, EM 500-550), green (EX 540-580, DM 585, EM 608-682) and UV (EX 340-390, DM 400, EM 420LP) excitation filters included

Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.

Specimen stage: Fixed stage, 215×250 mm and attachable mechanical stage, 290×250 mm, 120×80 mm X-Y movement range

 Focusing: Coaxial coarse and fine focusing mechanism with a limit stop to prevent contact between objective and specimen. Adjustable tension of coarse focusing knob.
